Power Supplies Unregulated Double.¶
Features.¶
- Voltage & Current depends on the TALEMA 25VA transformer used.
- PCB Dimensions 125mm x 60mm.
Schematic.¶

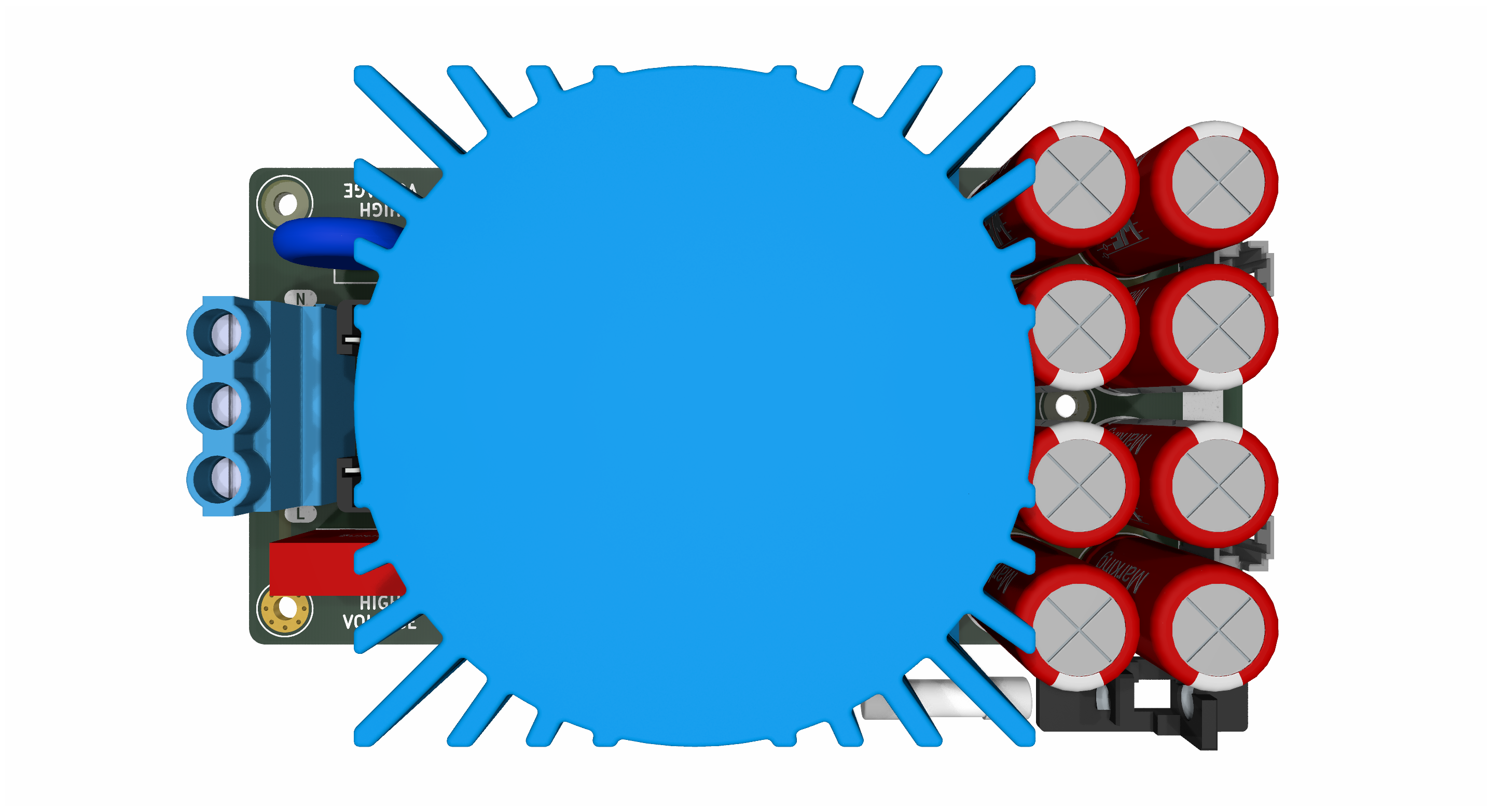

PSUD 25VA Top.¶

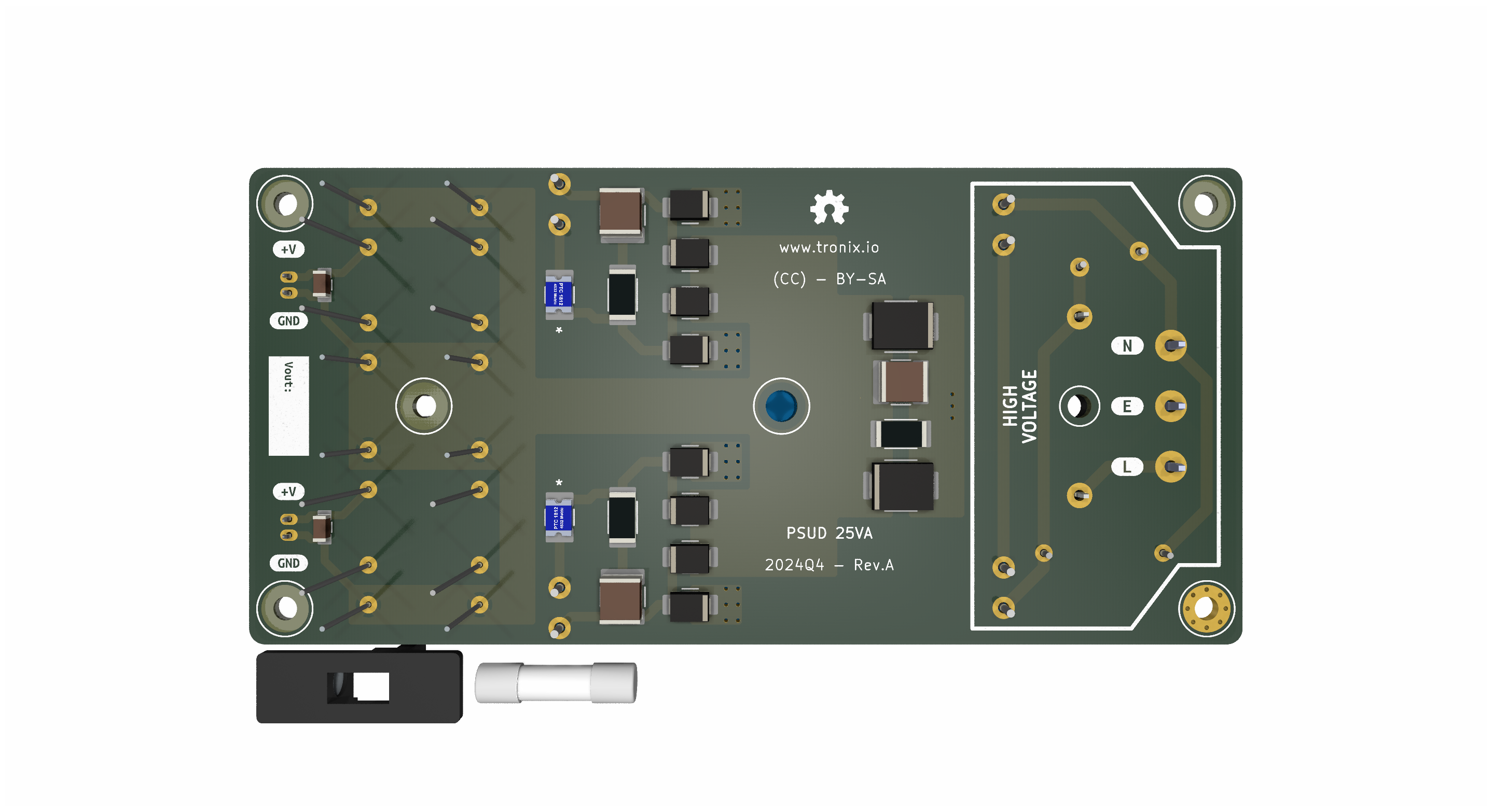

PSUD 25VA Bottom.¶
Note
- DRAFT : Prototype OK, last check schematic, PCB & code can be modify.
- TODO : Work in progress, prototype was not good, hardware, PCB and code can be rework.
