Power Supplies Regulated Double.¶
Features.¶
- 2xLM2596-50: 2x5V / 1.5A.
- Transformer TALEMA 25VA.
- PCB Dimensions 150mm x 60mm.
Schematic.¶

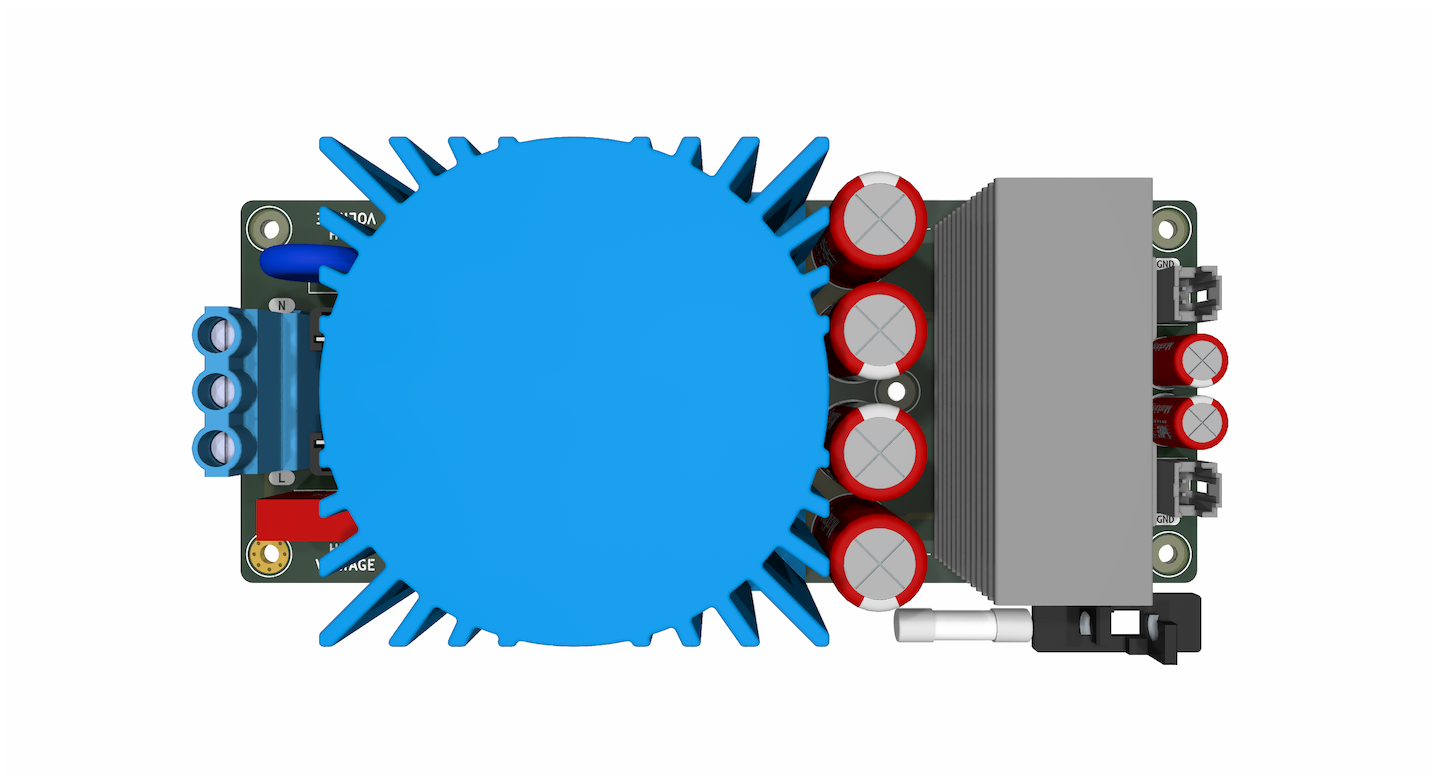

PSRD LM2596-50 Top.¶

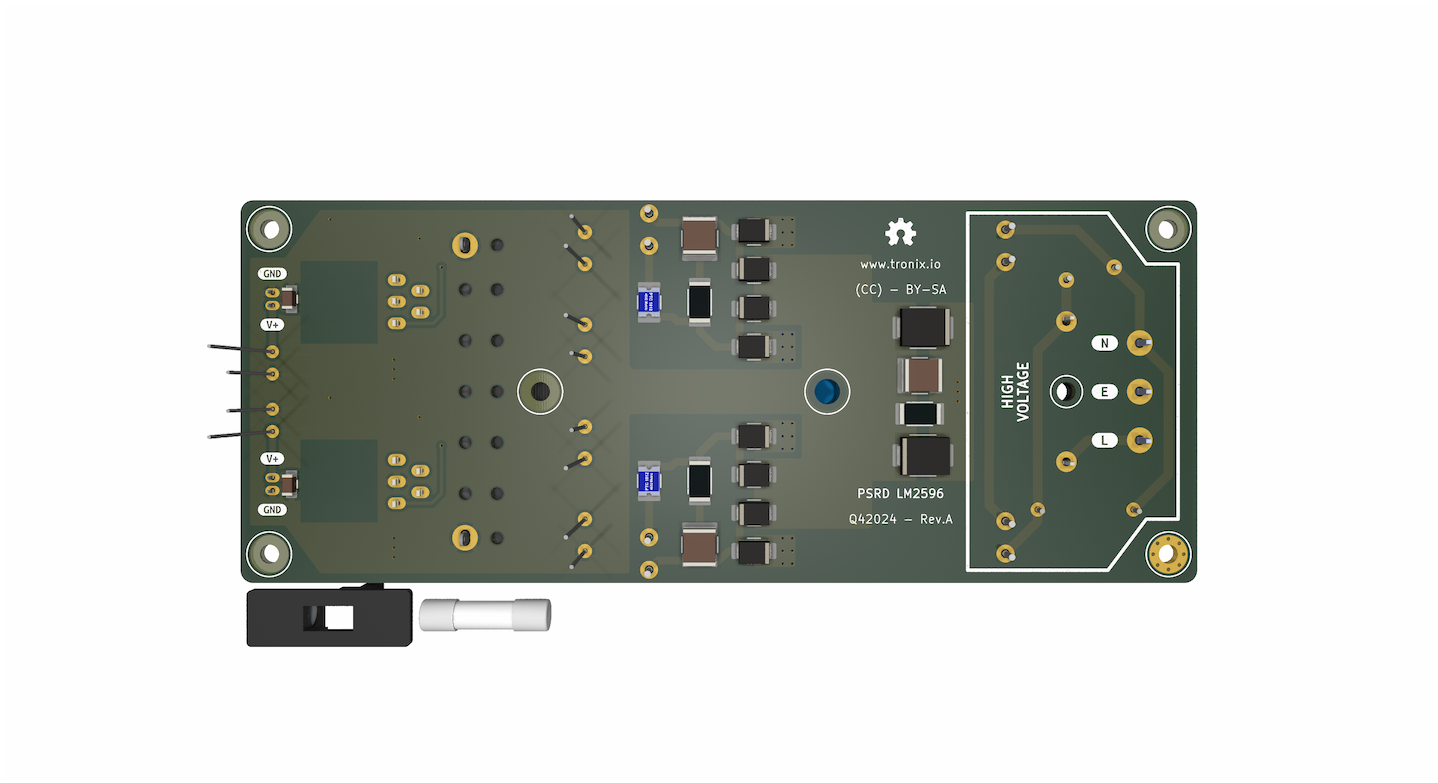

PSRD LM2596-50 Bottom.¶
Note
- DRAFT : Prototype OK, last check schematic, PCB & code can be modify.
- TODO : Work in progress, prototype was not good, hardware, PCB and code can be rework.
