Power Supplies Symetrical Regulated.¶
Features.¶
- LM317 / LM337: Voltage & Current depends on the transformer used.
- Transformer TALEMA 10VA.
- PCB Dimensions 150mm x 60mm.
Schematic.¶

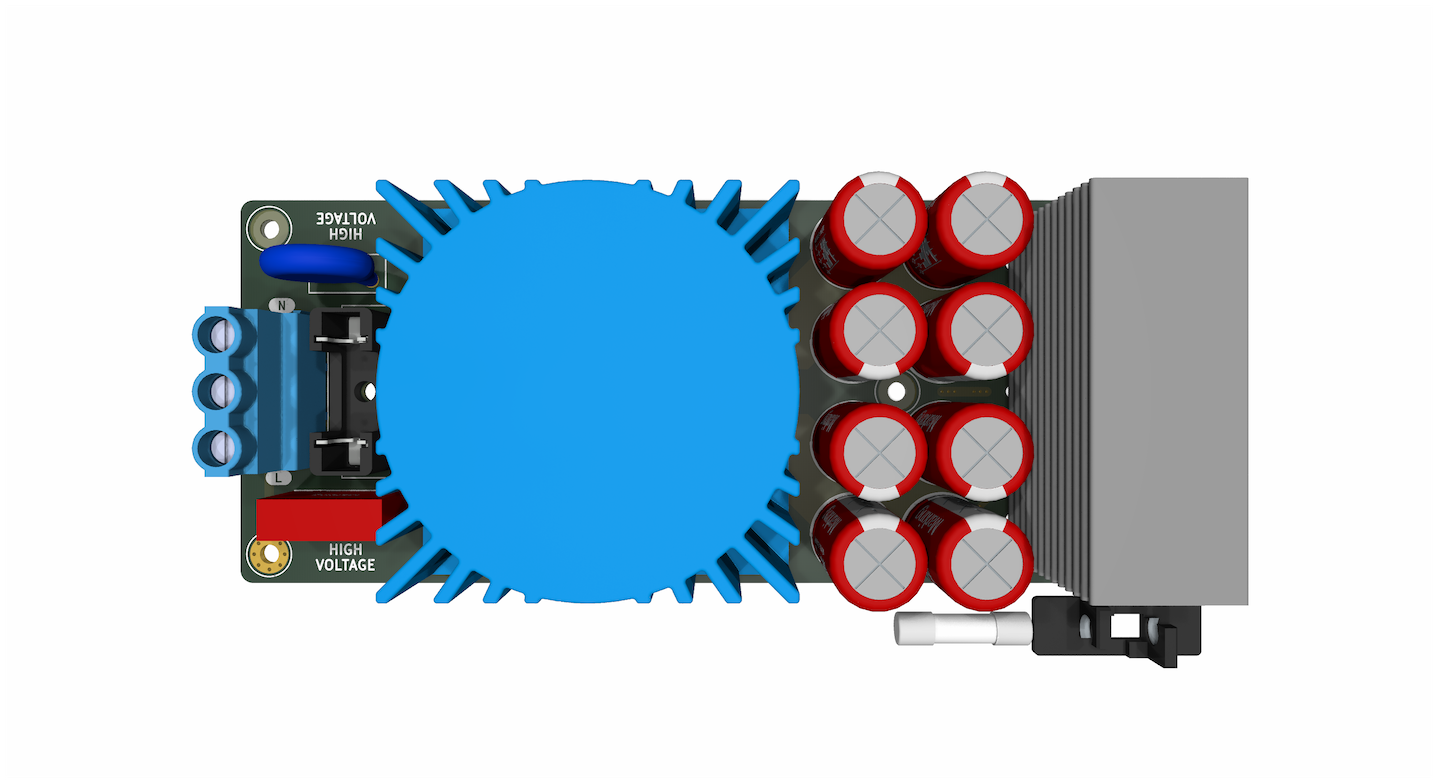

PSS 10VA Top.¶
PSS 10VA Bottom.¶
Note
- DRAFT : Prototype OK, last check schematic, PCB & code can be modify.
- TODO : Work in progress, prototype was not good, hardware, PCB and code can be rework.
